Overview
Engineered for retail, showrooms, hotels and beyond
Our 48V magnetic track system builds seamless, flexible lighting for retail, hospitality and modern homes. Slim aluminum rails install surface-mounted, recessed or pre-buried, with strong magnetic absorption for tool-free repositioning of modules. The catalog spans honeycomb and spiral anti-glare spotlights on Bridgelux COB, grille bars, mini and globe pendants, flexible and L-shape corners, end caps, DC48V power supplies and power connectors — all in white, black, silver and gold finishes.
Key features
- Rails: surface / recessed / pre-buried, L1000–3000 mm
- Input: DC48V low voltage
- Spotlights: 3–10W Bridgelux COB, honeycomb / spiral anti-glare optics
- Modules: spotlights, grille lights, pendants, globe pendants
- Accessories: corners, connectors, end caps, 100/200W power supply
- Finishes: white / black / silver / gold
Series
Available series within 48V Magnetic Track System
Surface Mount Track
Minimalist profile with strong magnetic absorption for tool-free placement of modules.
- L1000/2000/3000 mm
- W19.3 × H13.5 mm
- Input DC48V
- White / black

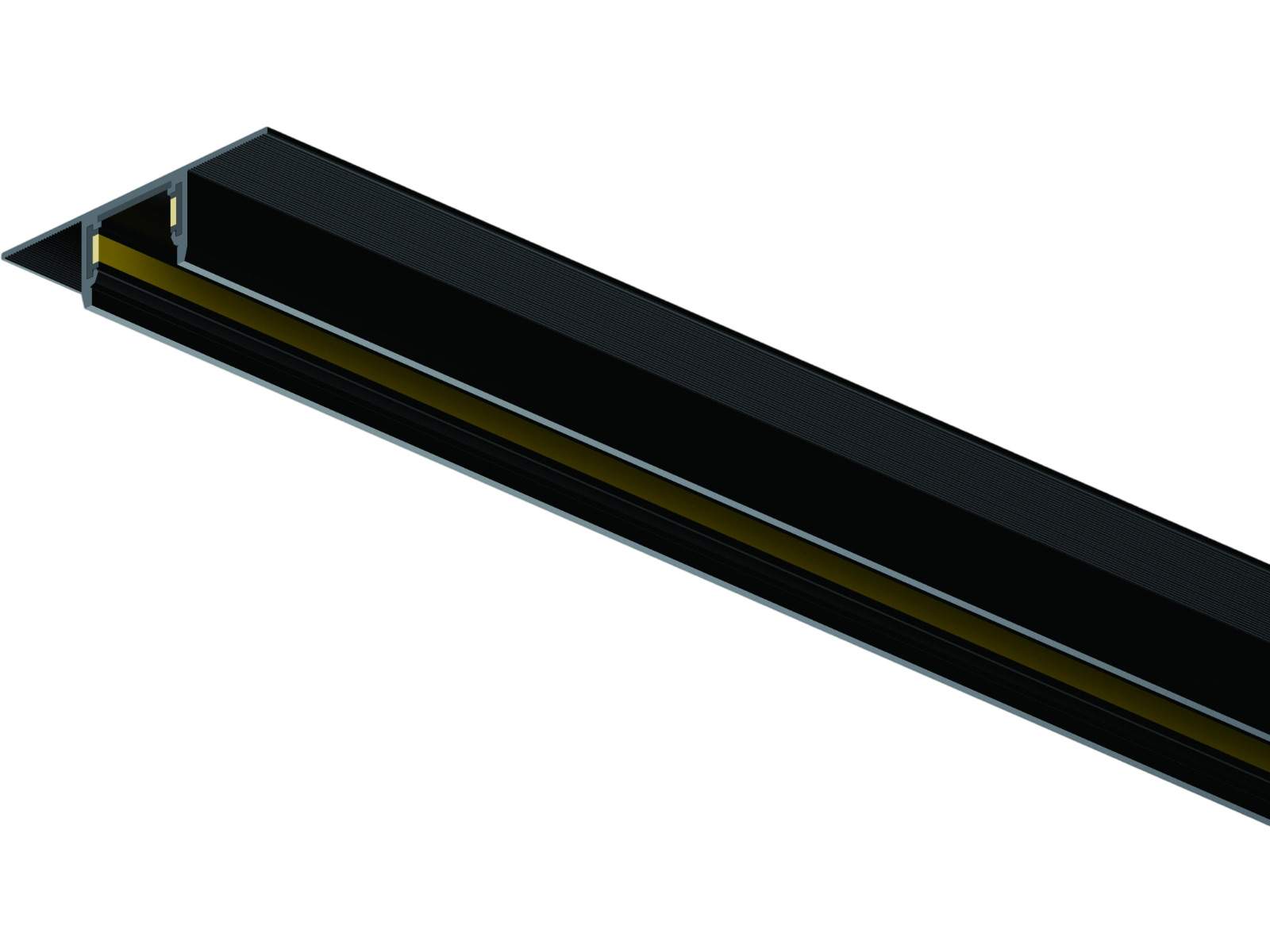

Recessed Mount Track
Flush ceiling installation for a clean, minimalist look with strong magnetic absorption.
- For gypsum board
- L1000/2000/3000 mm
- Input DC48V
- Low MOQ

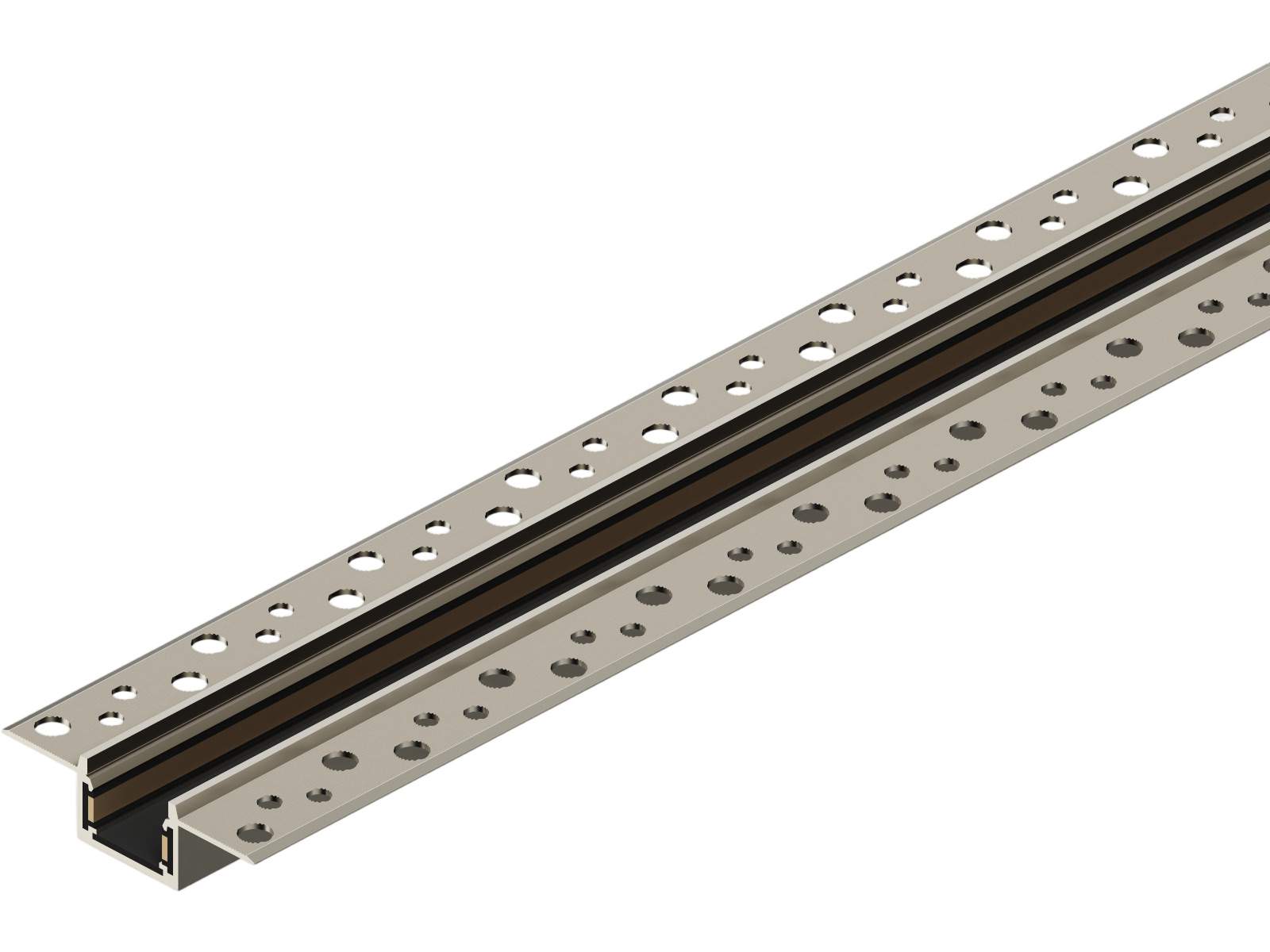

Pre-buried Magnetic Track
Pre-buried flush installation with no visible track edges for a seamless look.
- Aluminum
- Pre-buried design
- 19 mm cut
- Embedded rail system

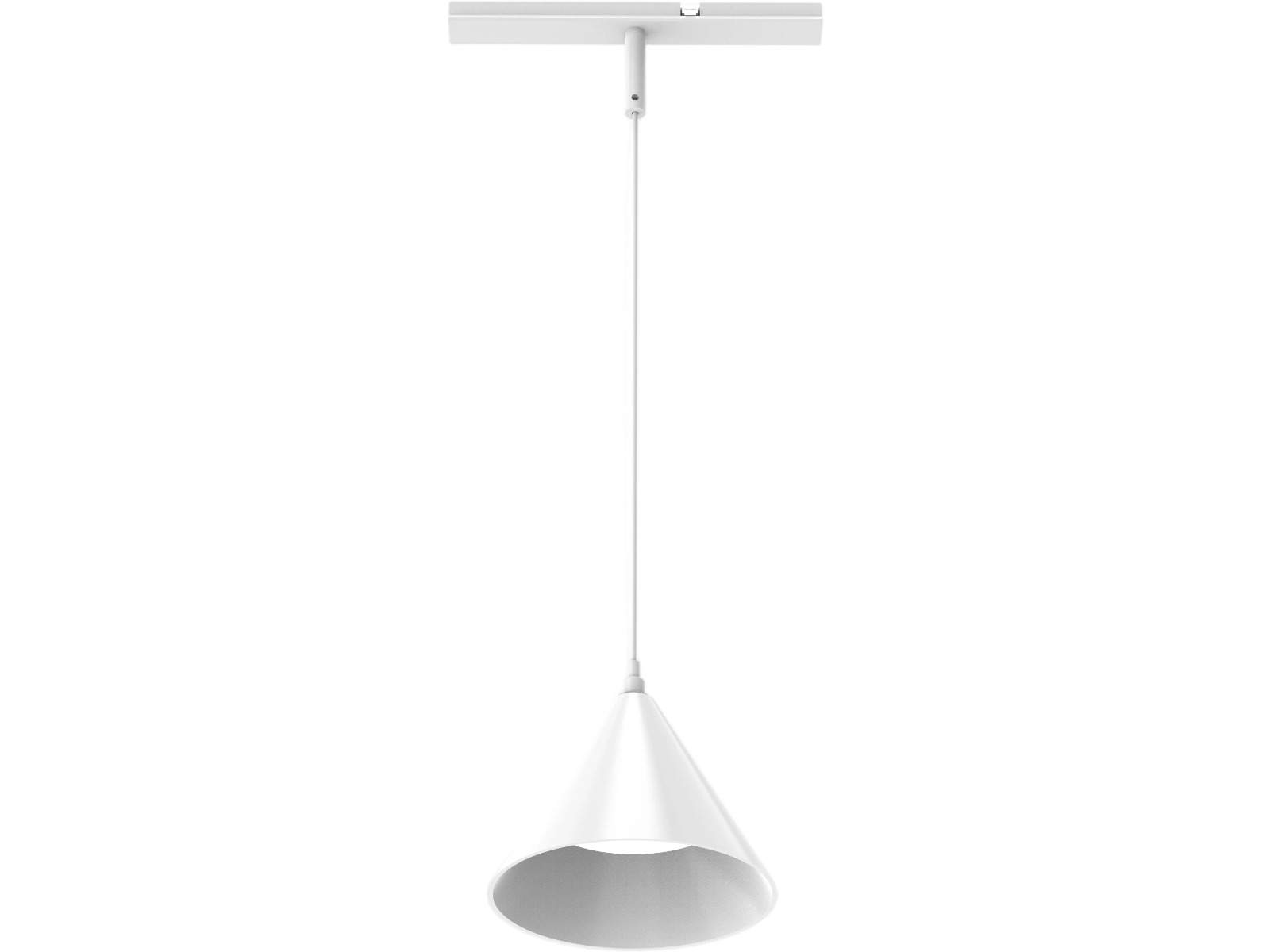

48V Mini Magnetic Track Pendant Light
Elegant conical pendant for the 48V mini magnetic track, customizable.
- 5W / 7W
- Black / white / gold
- 24° beam
- Ø100 × 85 mm

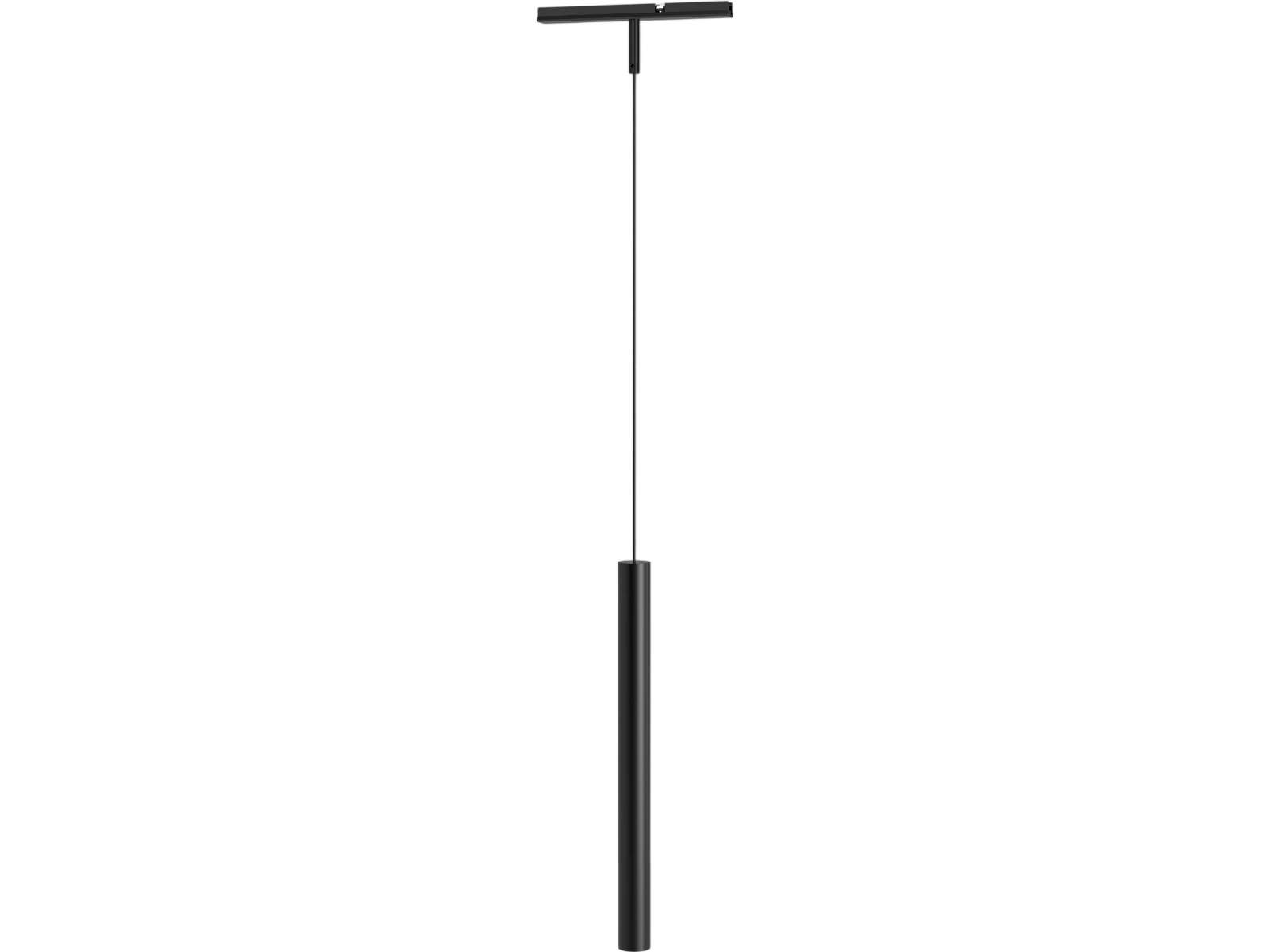

DC48V Magnetic Rail Pendant
Sleek black cylinder on an ultra-thin cable for the 48V magnetic track.
- 5W
- 2700–6000K
- 24° beam
- Ø43 × H88 mm

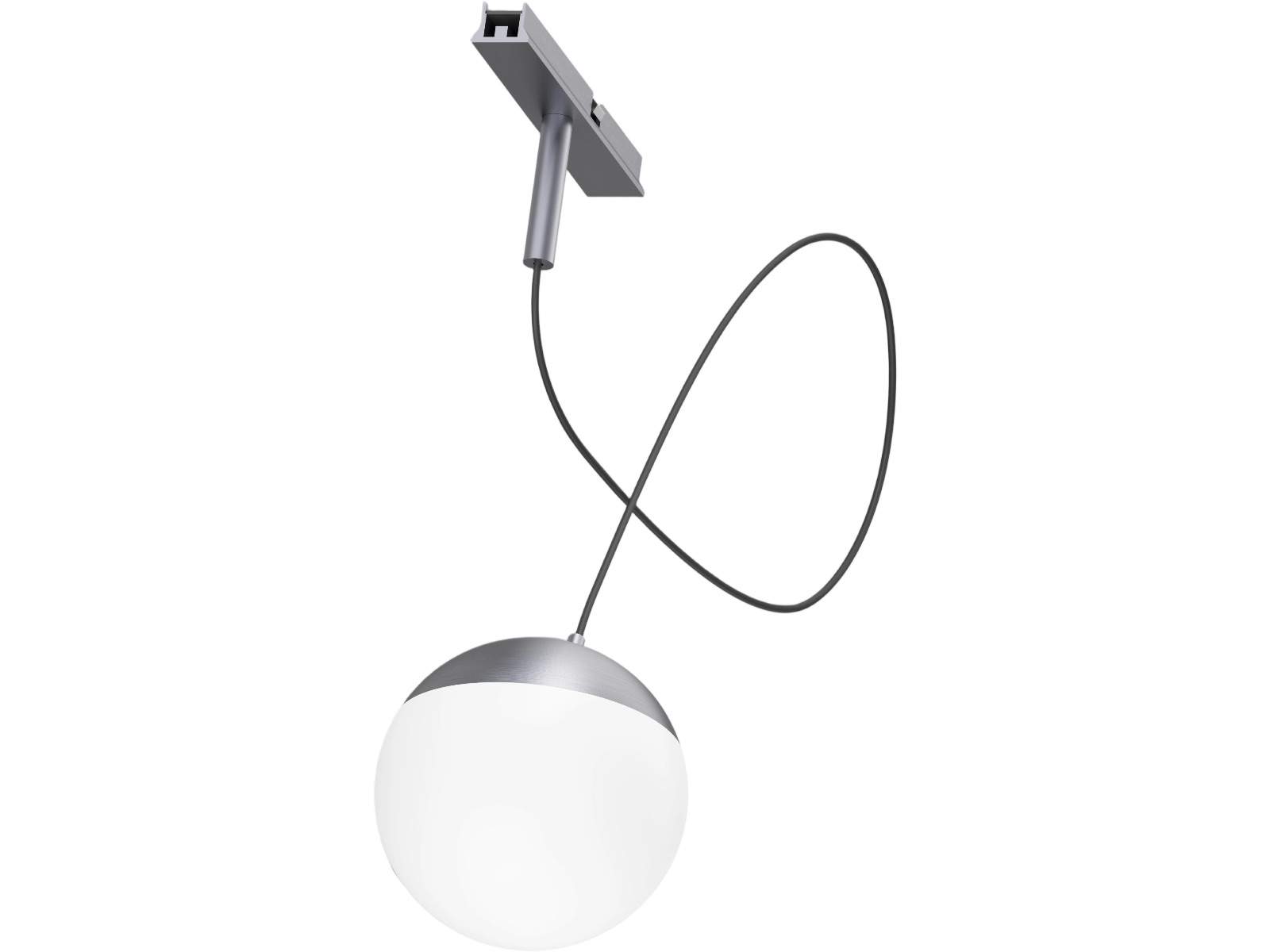

DC48V Magnetic Track Globe Pendant
Soft-glowing white glass globe with brushed-silver top on a flexible cable.
- 7W
- 100° beam
- Ø100 mm
- Globe ball pendant

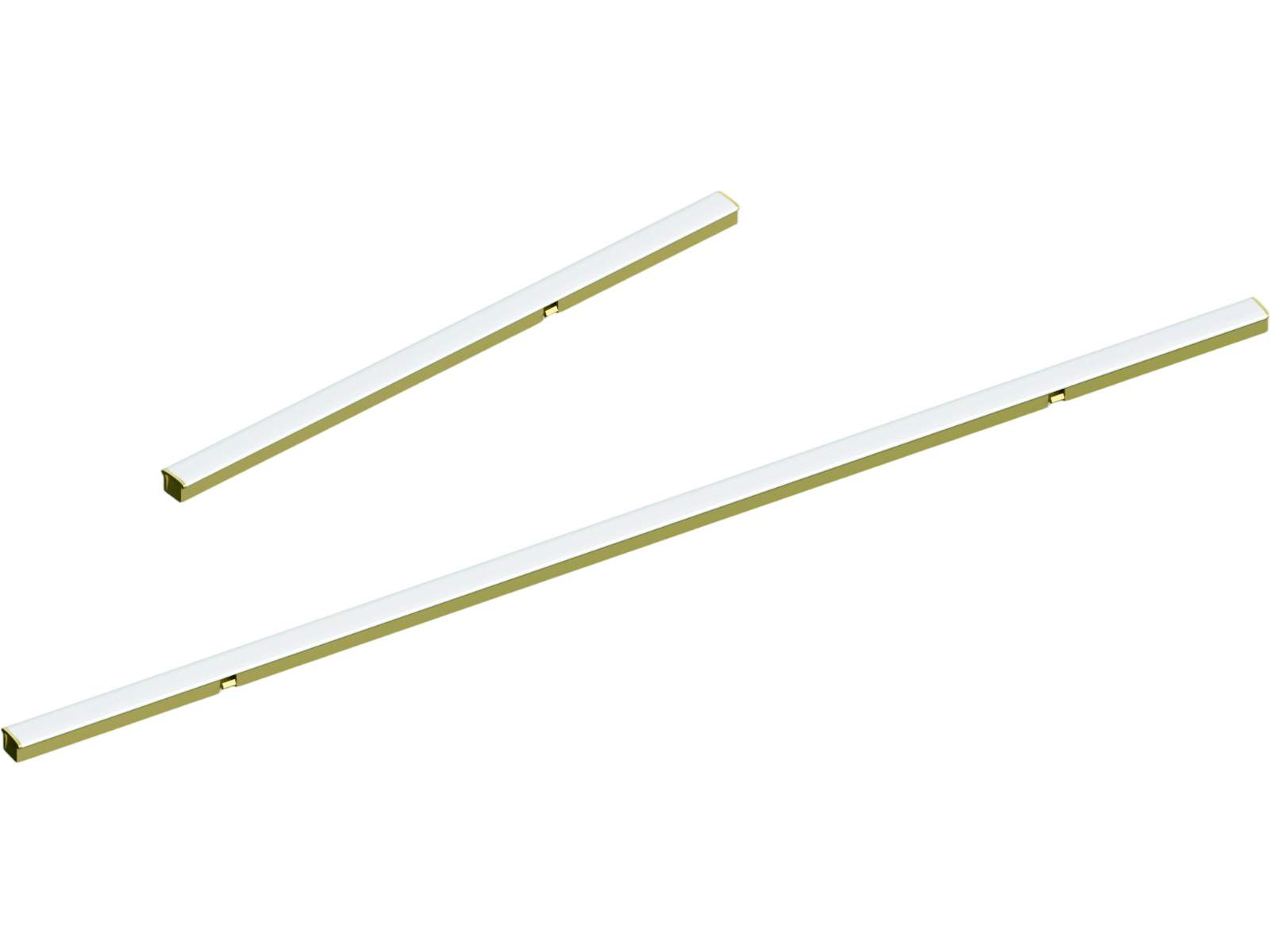

48V Magnetic Track Grille Light
White diffuser linear bar with gold/brass trim for uniform architectural light.
- 8W / 16W
- L300 & 600 mm
- Black / white / gold
- W15 × H11 mm

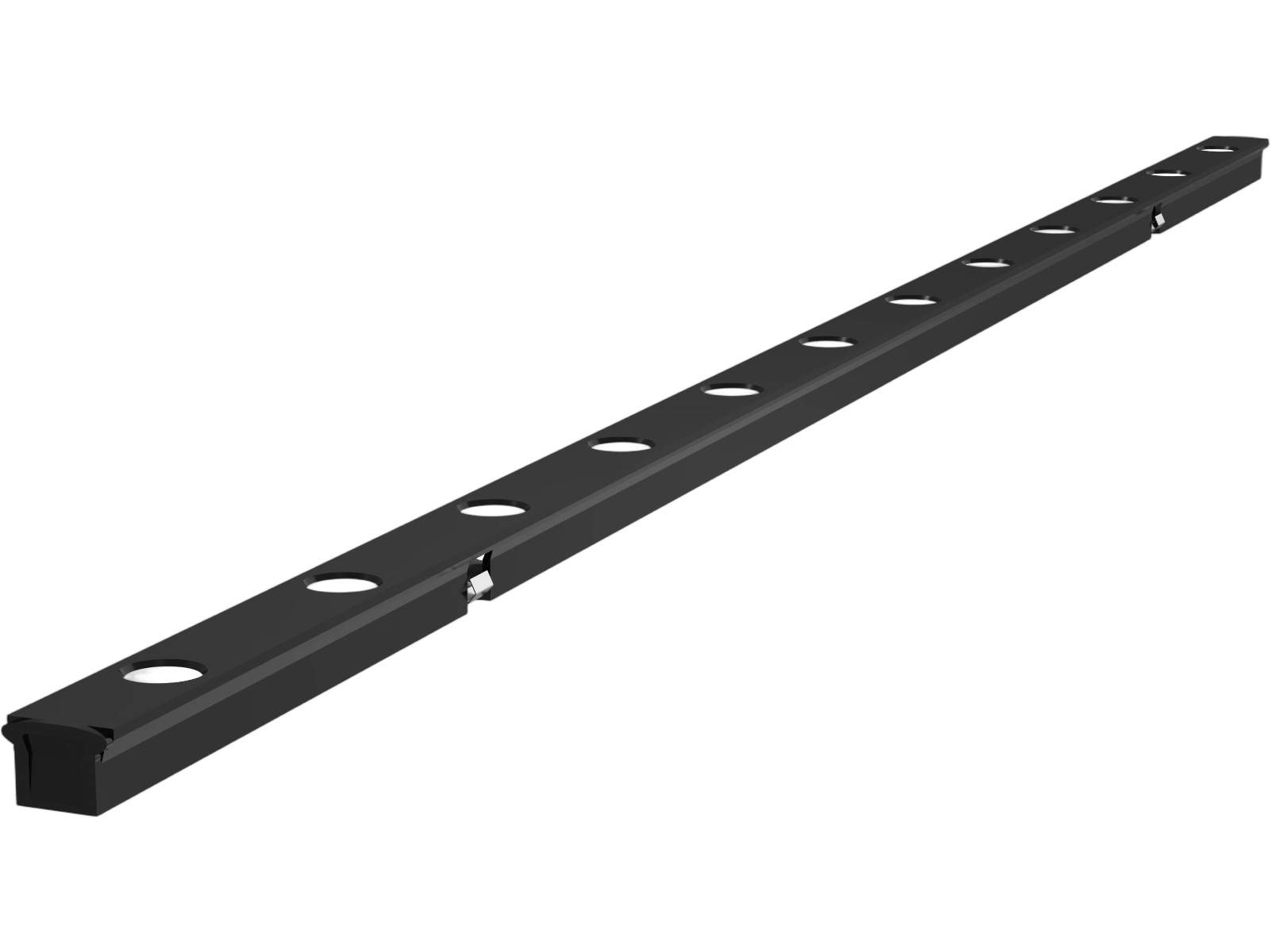

Anti-Glare Magnetic Track Grille Light
Precision circular baffles deliver focused light with minimal glare.
- Deep baffle
- 6W / 12W
- 36° beam
- Ra90+

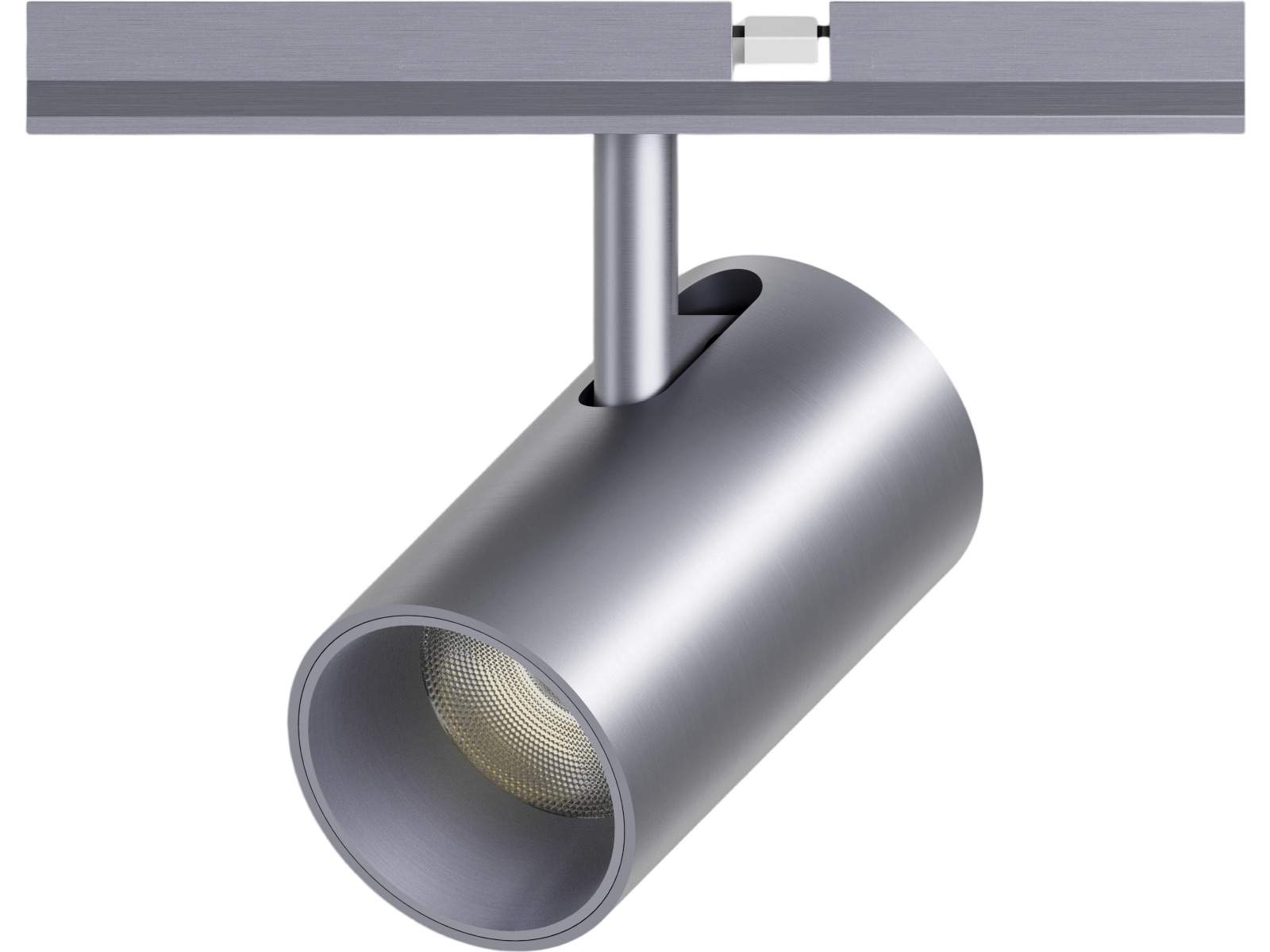

Magnetic Track Spotlight
Brushed-silver cylinder with honeycomb anti-glare lens, 350° rotation and 90° tilt.
- 3W / 5W / 10W
- Bridgelux COB
- 24° beam
- White/black/silver/gold

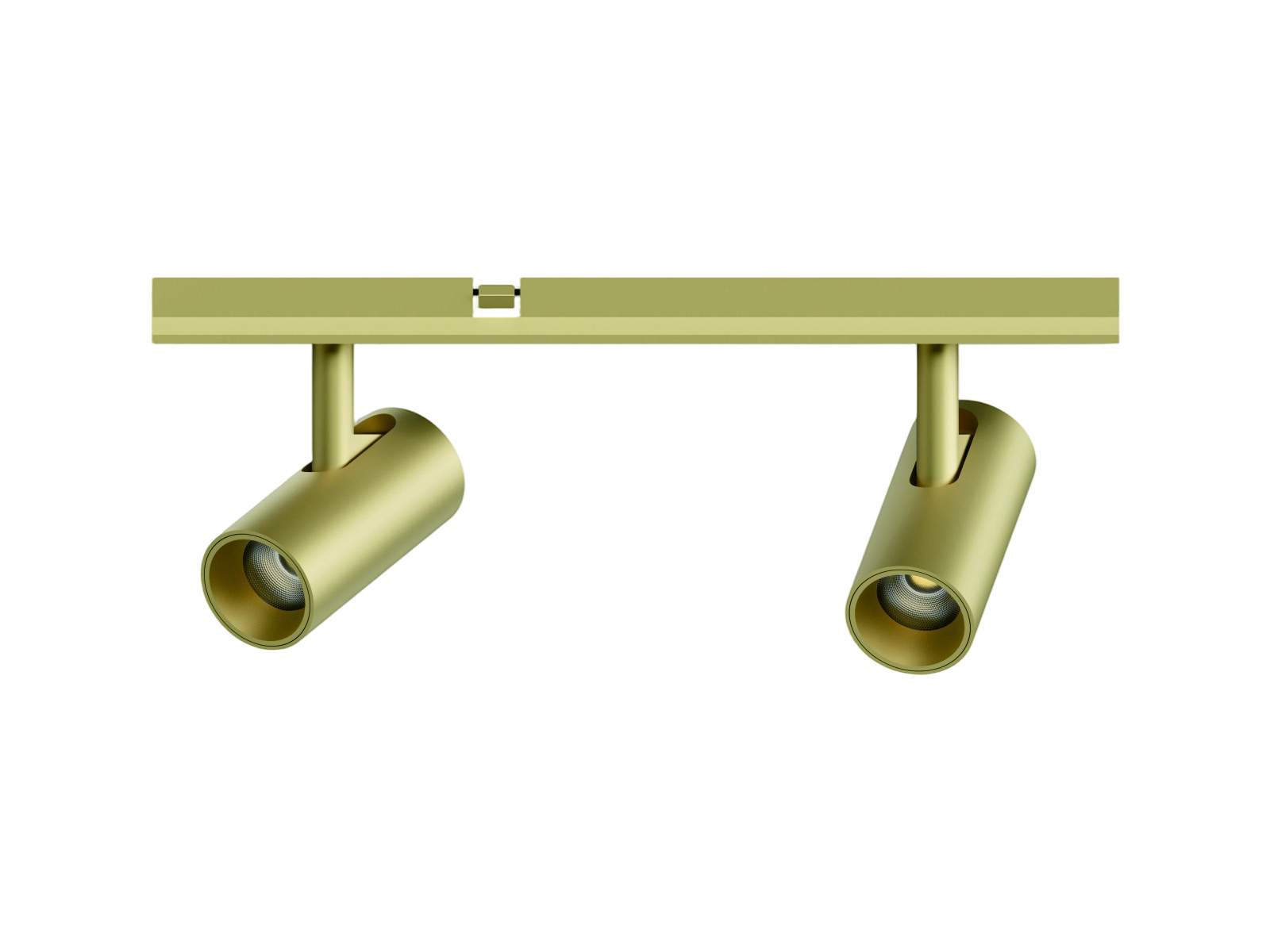

Double-Head Magnetic Track Spotlight
Twin adjustable heads in brushed gold for powerful directional lighting.
- 2×3W / 2×5W
- Bridgelux COB
- 24° beam
- White/black/silver/gold

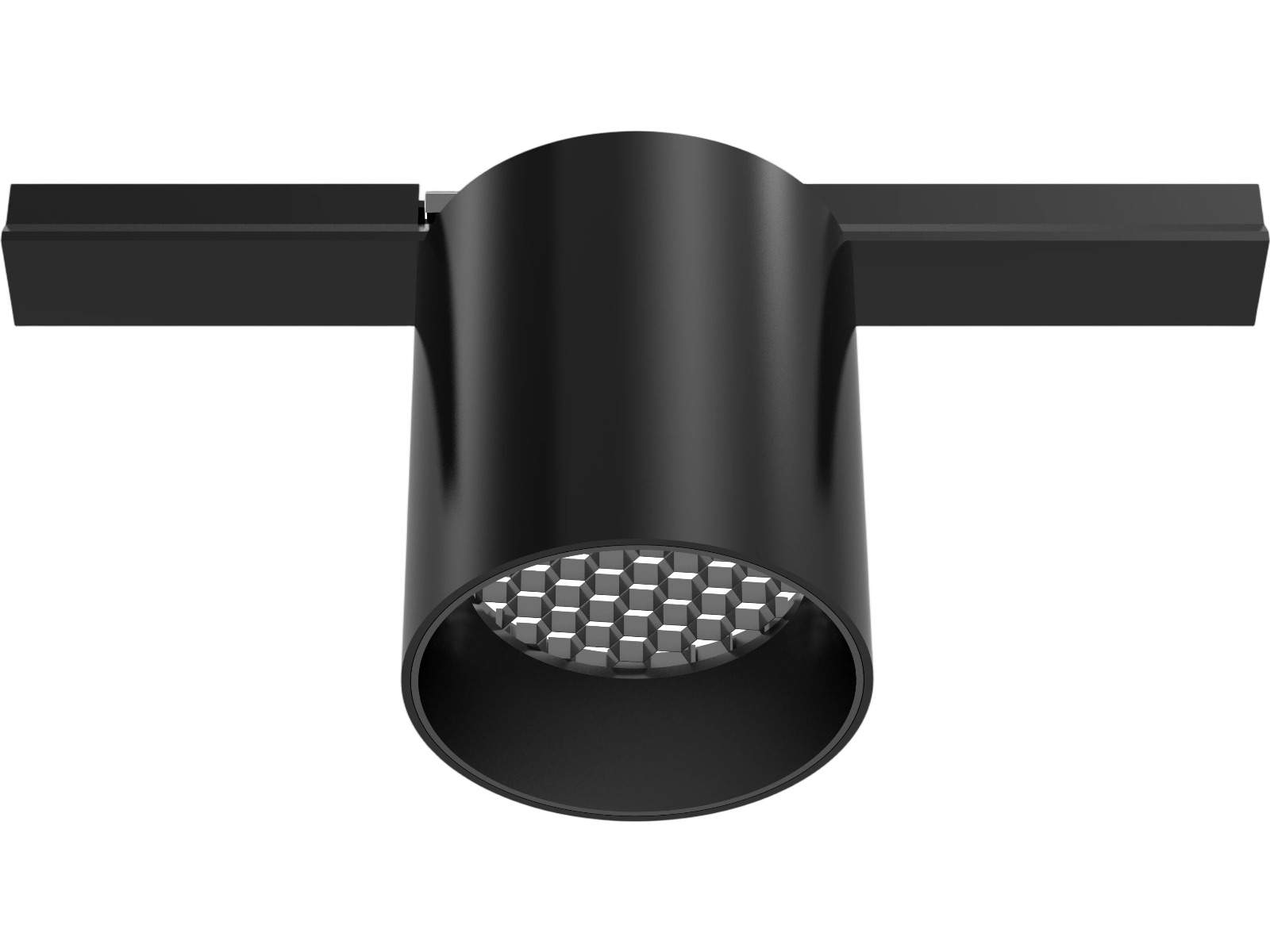

Honeycomb Magnetic Track Spotlight
Grid honeycomb lens for precise, comfortable light in a matte-black body.
- 10W
- Ø52×60×95 mm
- Honeycomb grid lens
- Deep baffle

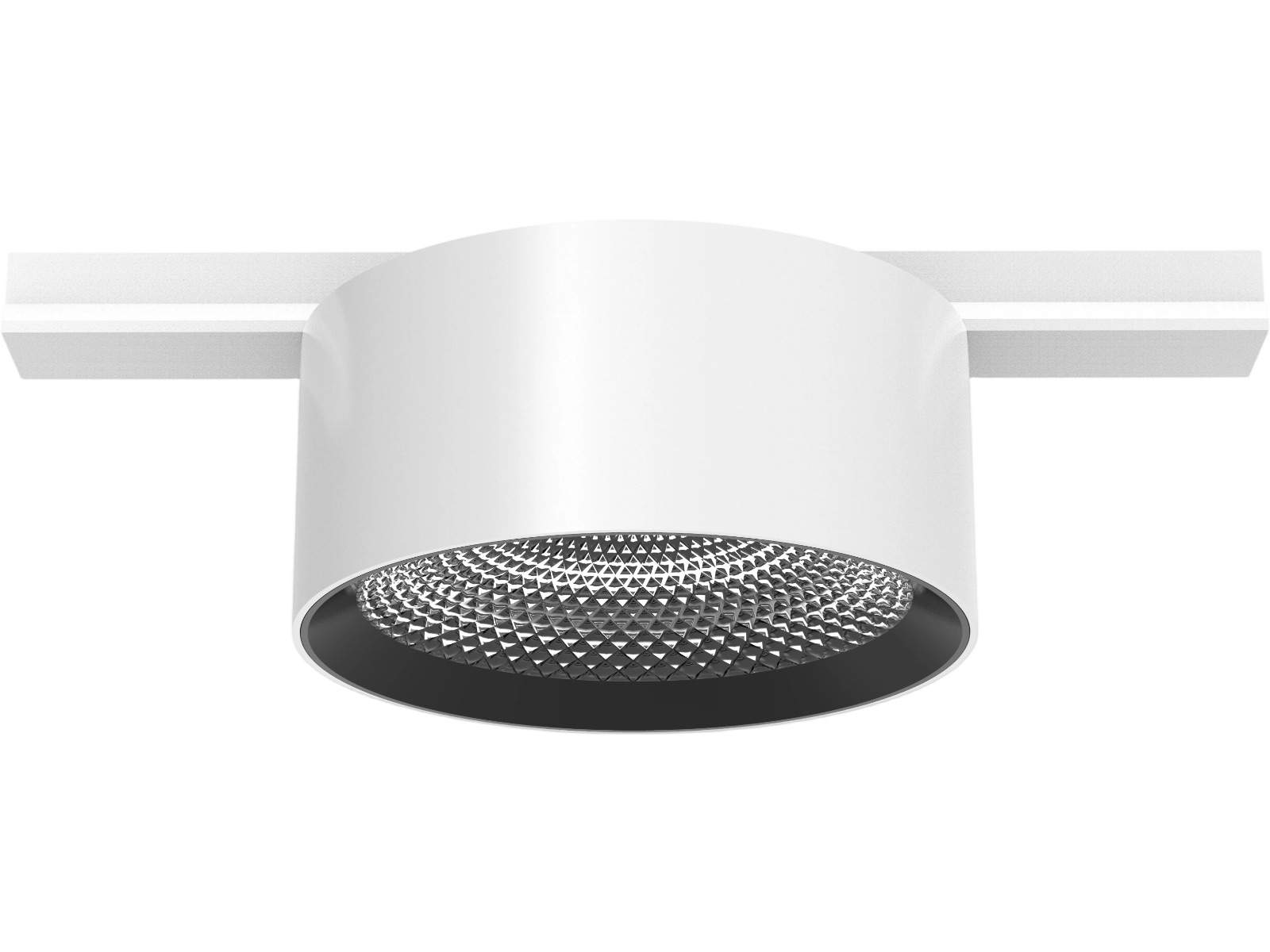

Honeycomb Magnetic Track Head
Bright white honeycomb anti-glare spotlight head with faceted lens.
- 10W
- Ø80×36 mm
- Crisp white finish
- Deep baffle

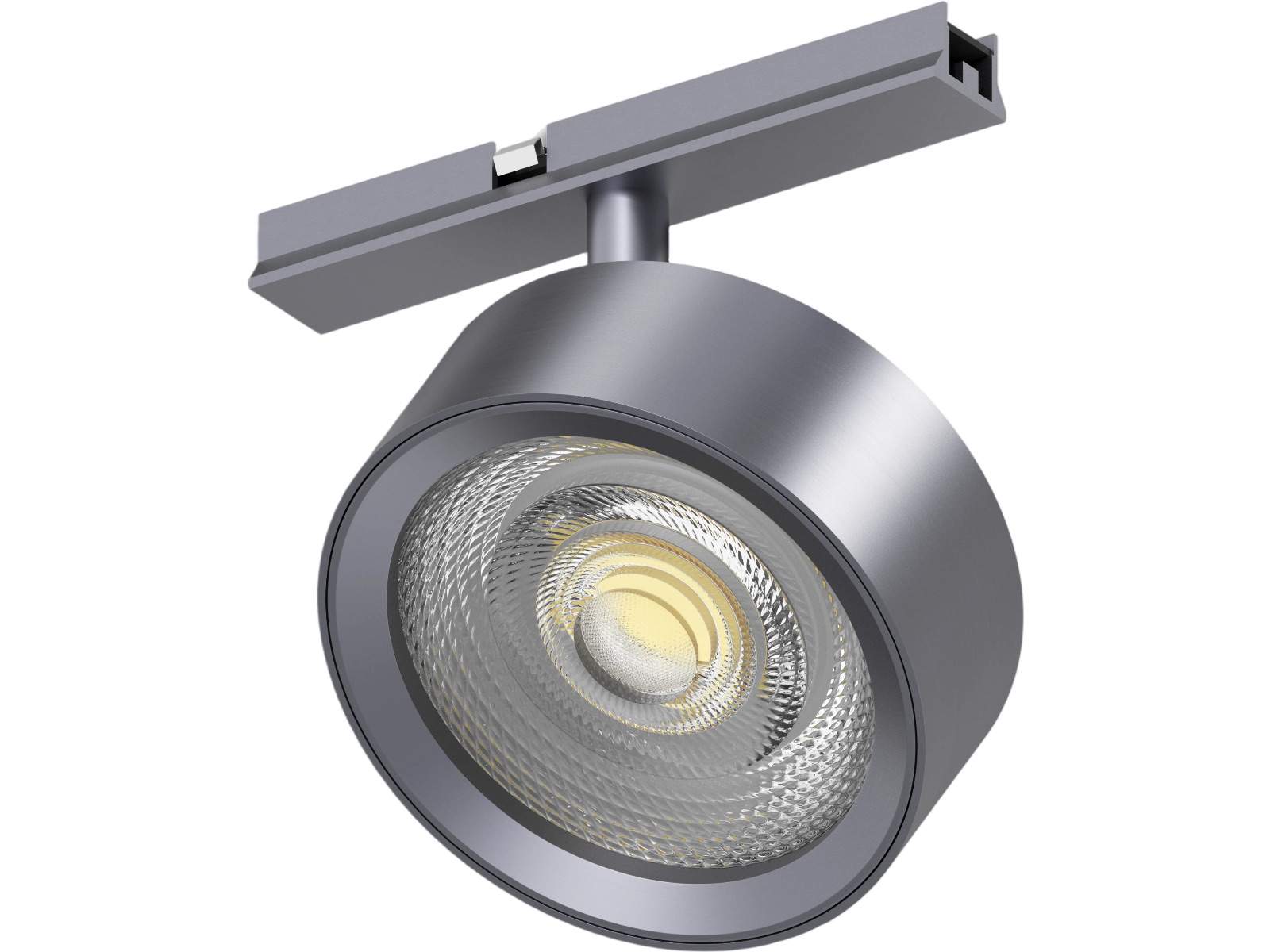

Spiral Lens Magnetic Track Spotlight
Spiral concentric honeycomb lens for beautiful, low-glare light distribution.
- 10W
- Ø80×32 mm
- Brushed silver
- Spiral honeycomb lens

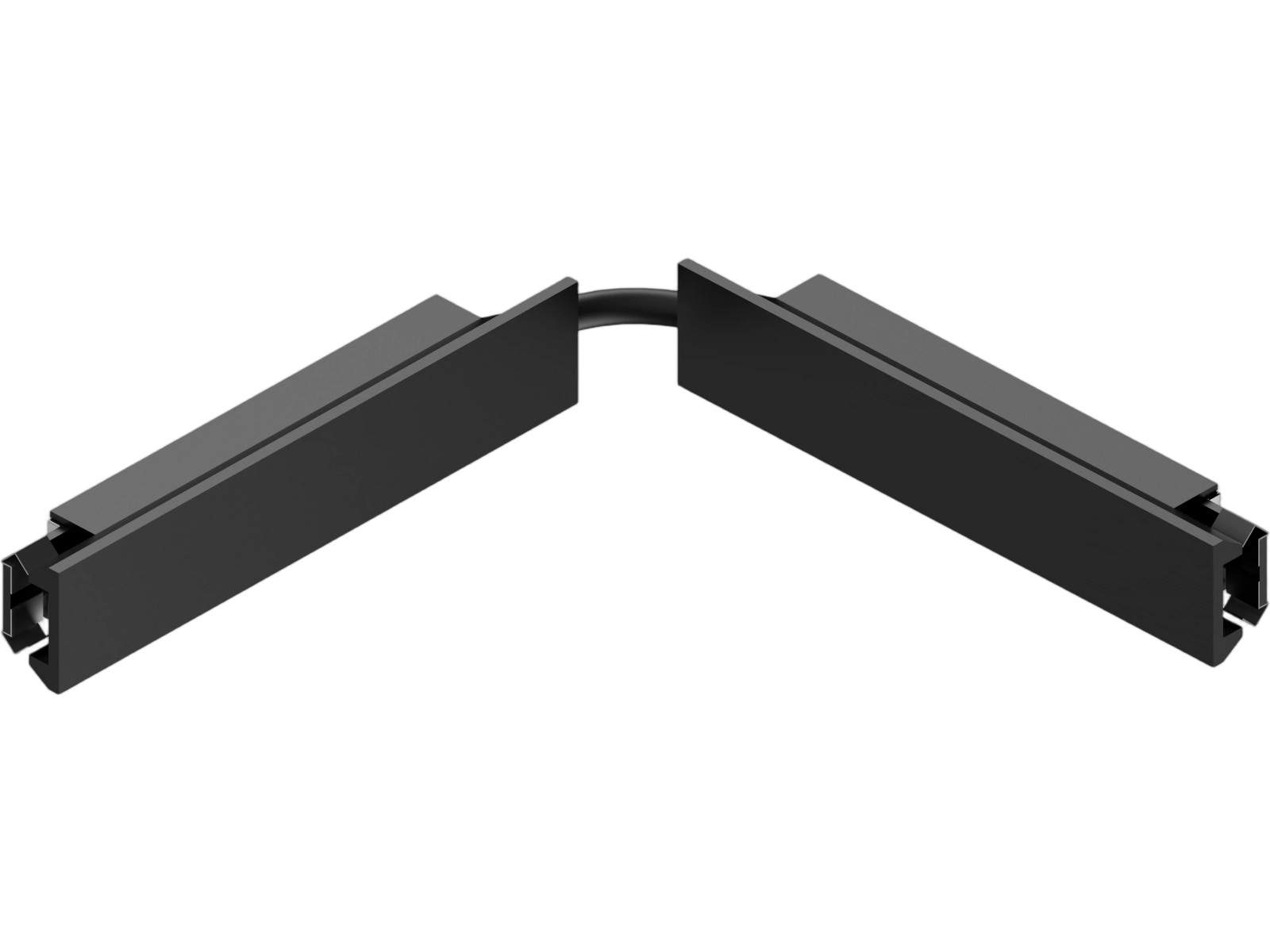

Magnetic Track Flexible Connector
Adjustable-angle joint enabling creative track layouts and seamless runs.
- Flexible angle
- White / black
- Secure magnetic fit
- Durable construction

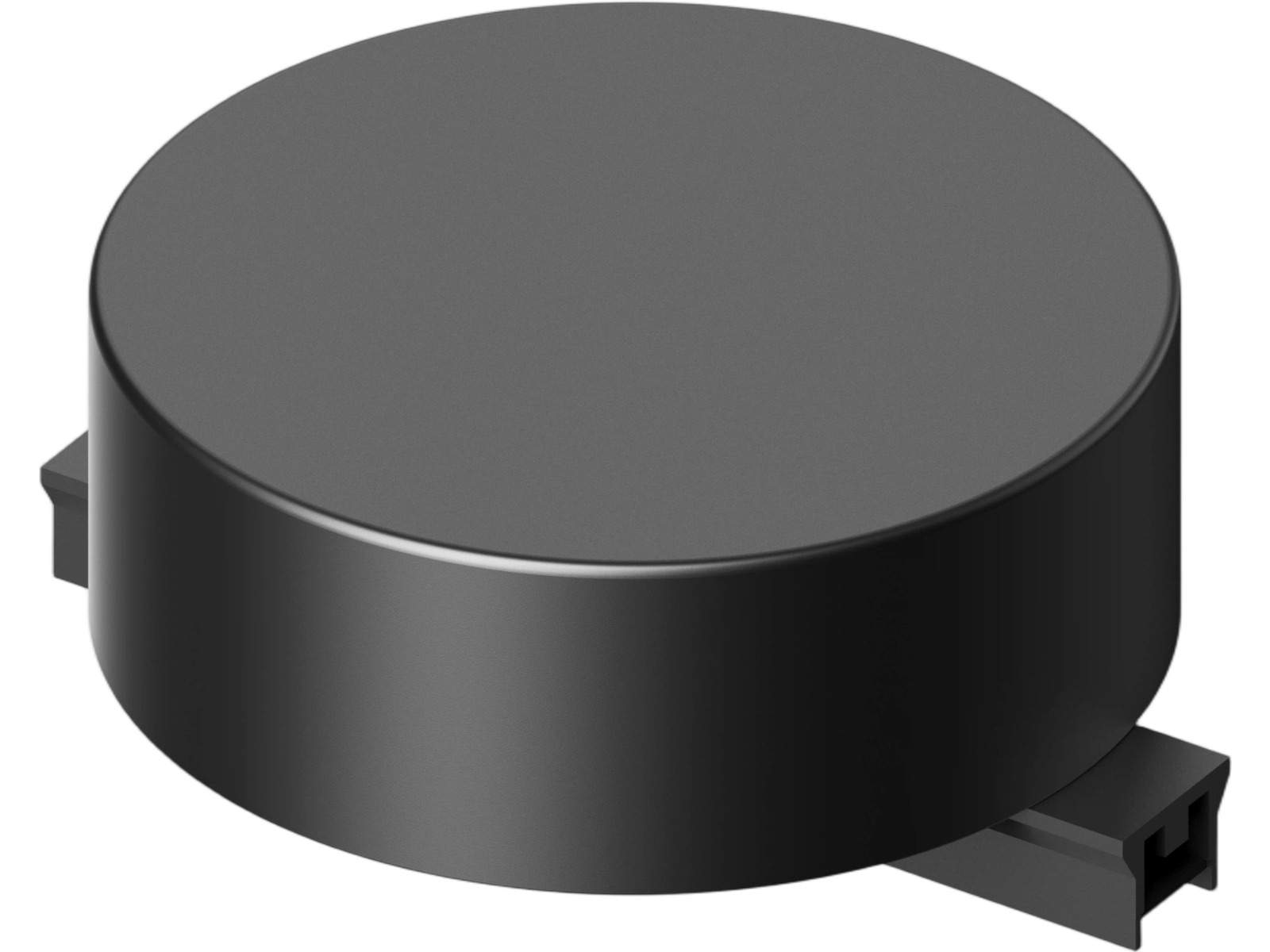

DC48V Power Supply
Delivers stable low-voltage power to the entire magnetic rail system.
- 100W / 200W
- White / black
- DC48V
- Ø85 × H26 mm

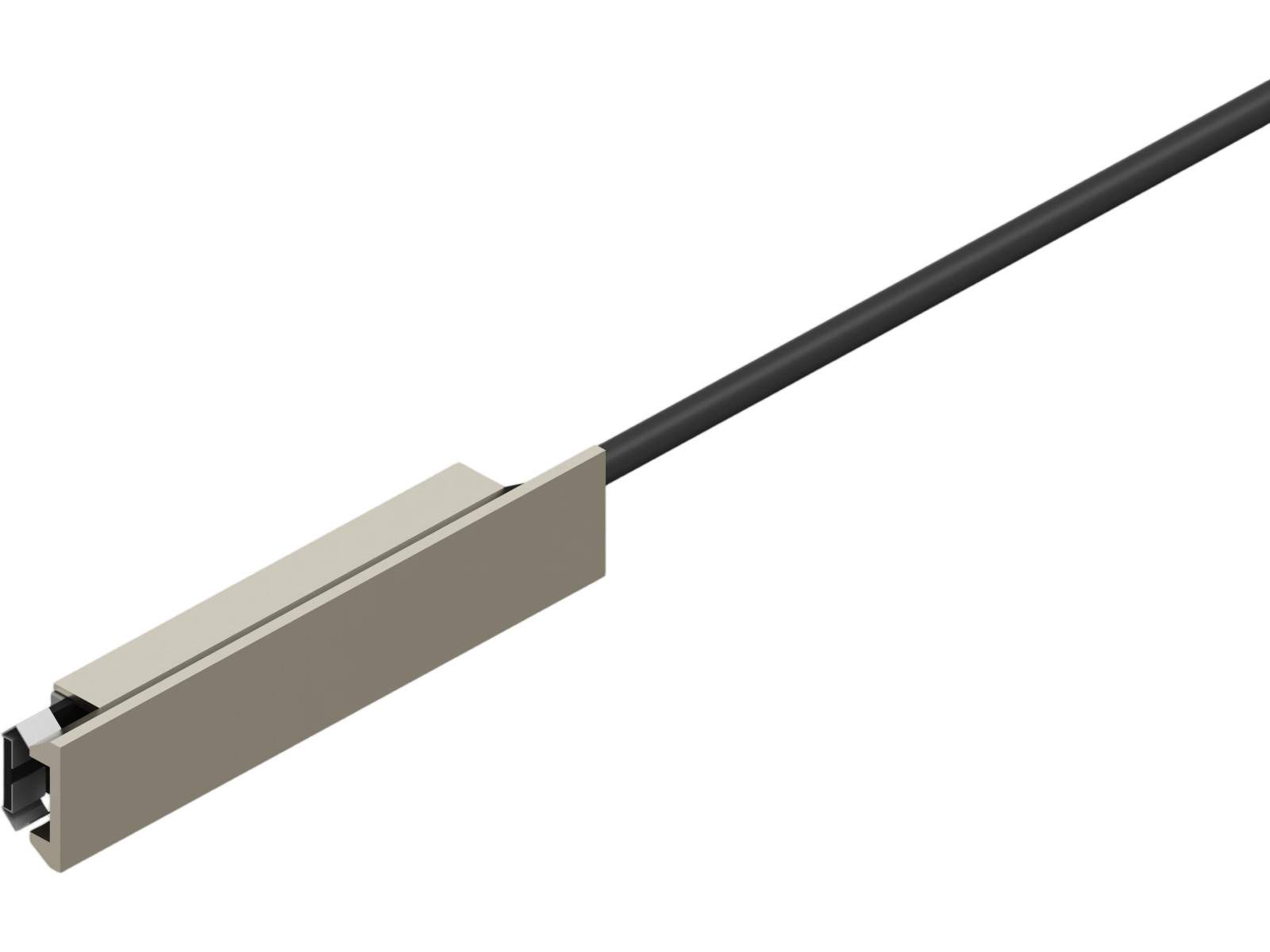

DC48V Track Power Connector
Power entry from mains to track with an inline cable exit for flexible install.
- Input connector
- White / black
- DC48V
- Inline cable design

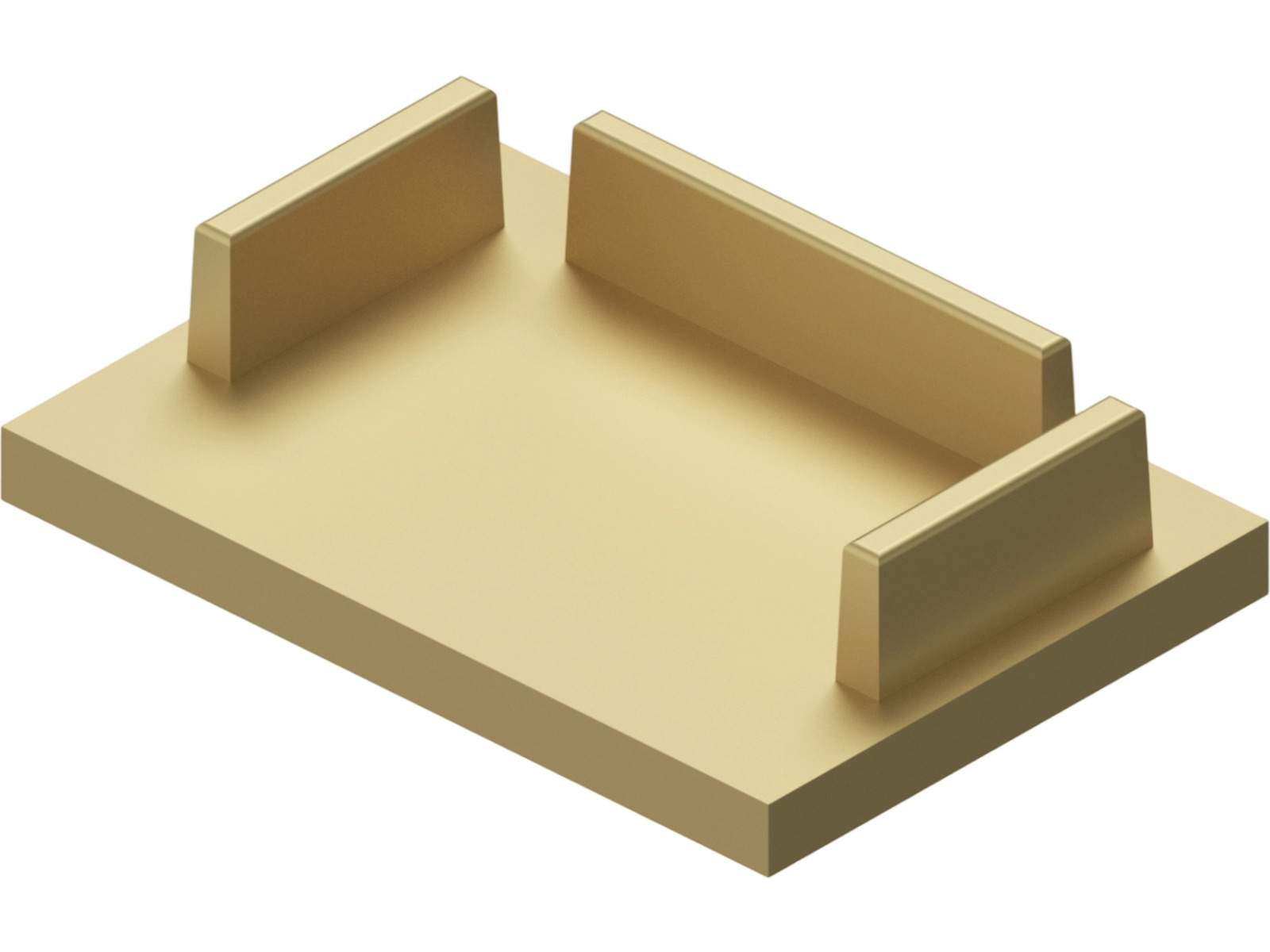

Magnetic Track End Cap
Seals the rail end for a polished look while protecting internal components.
- Premium gold finish
- White / black / gold
- DC48V
- Protective function

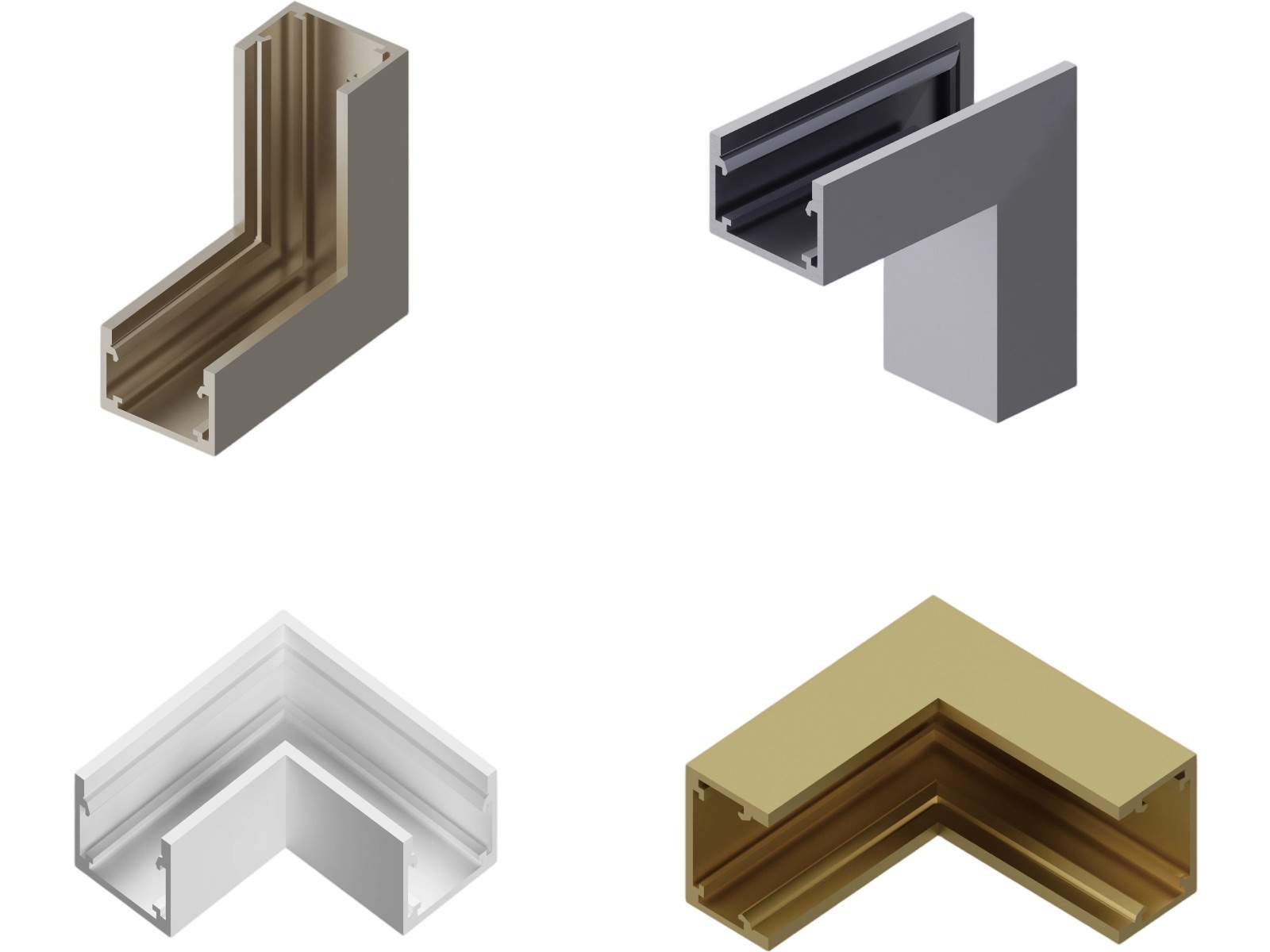

Surface Mount Magnetic Track Corner
Surface-mount L-shape connector for clean 90° turns on walls and ceilings.
- Full aluminum
- White / black / gold
- DC48V
- Tool-free install

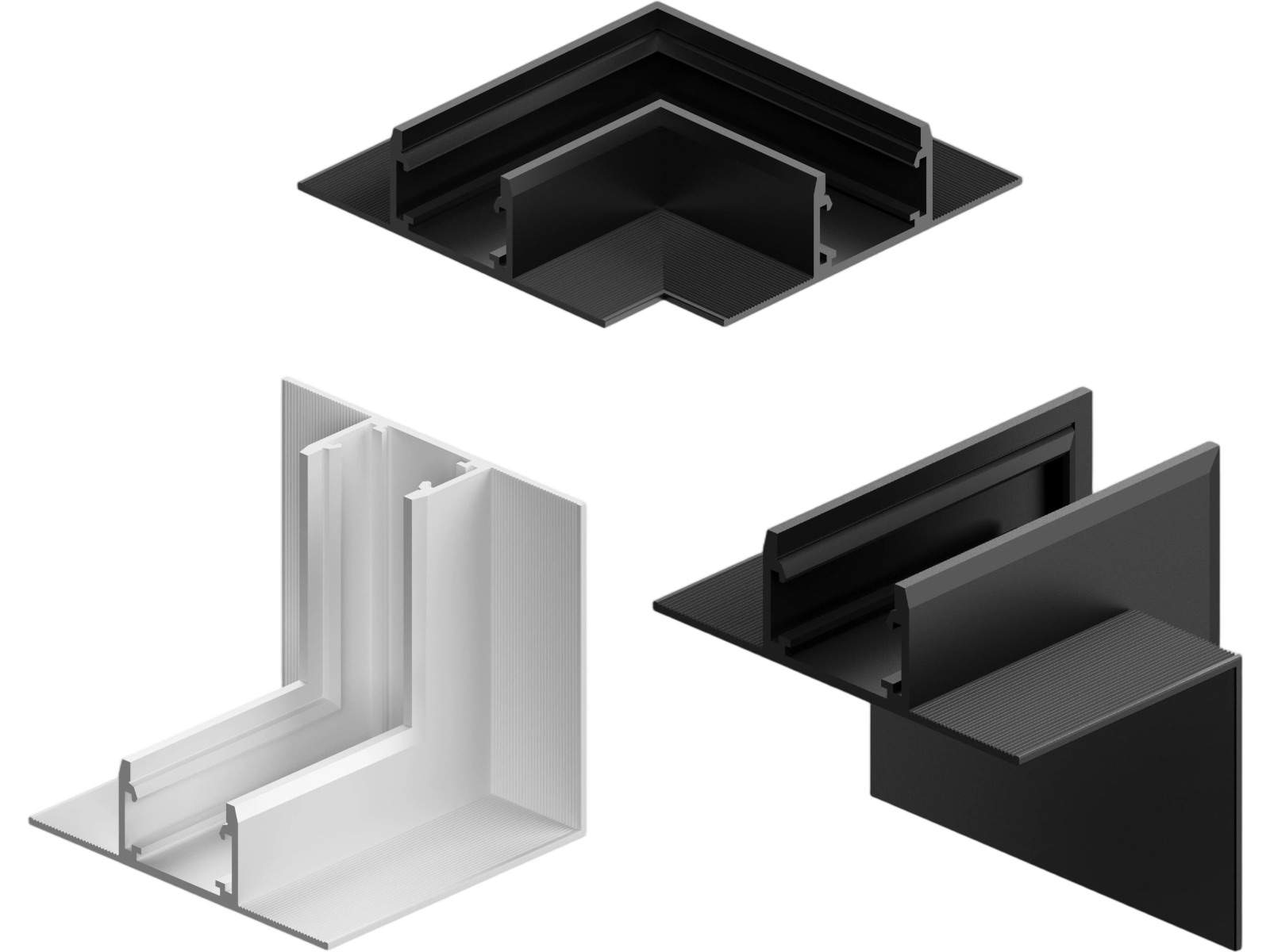

Embedded Track System Corner Joint
Embedded 90° corner keeping a minimalist, integrated look.
- Full aluminum
- White / black / gold
- DC48V
- Flush-mount design

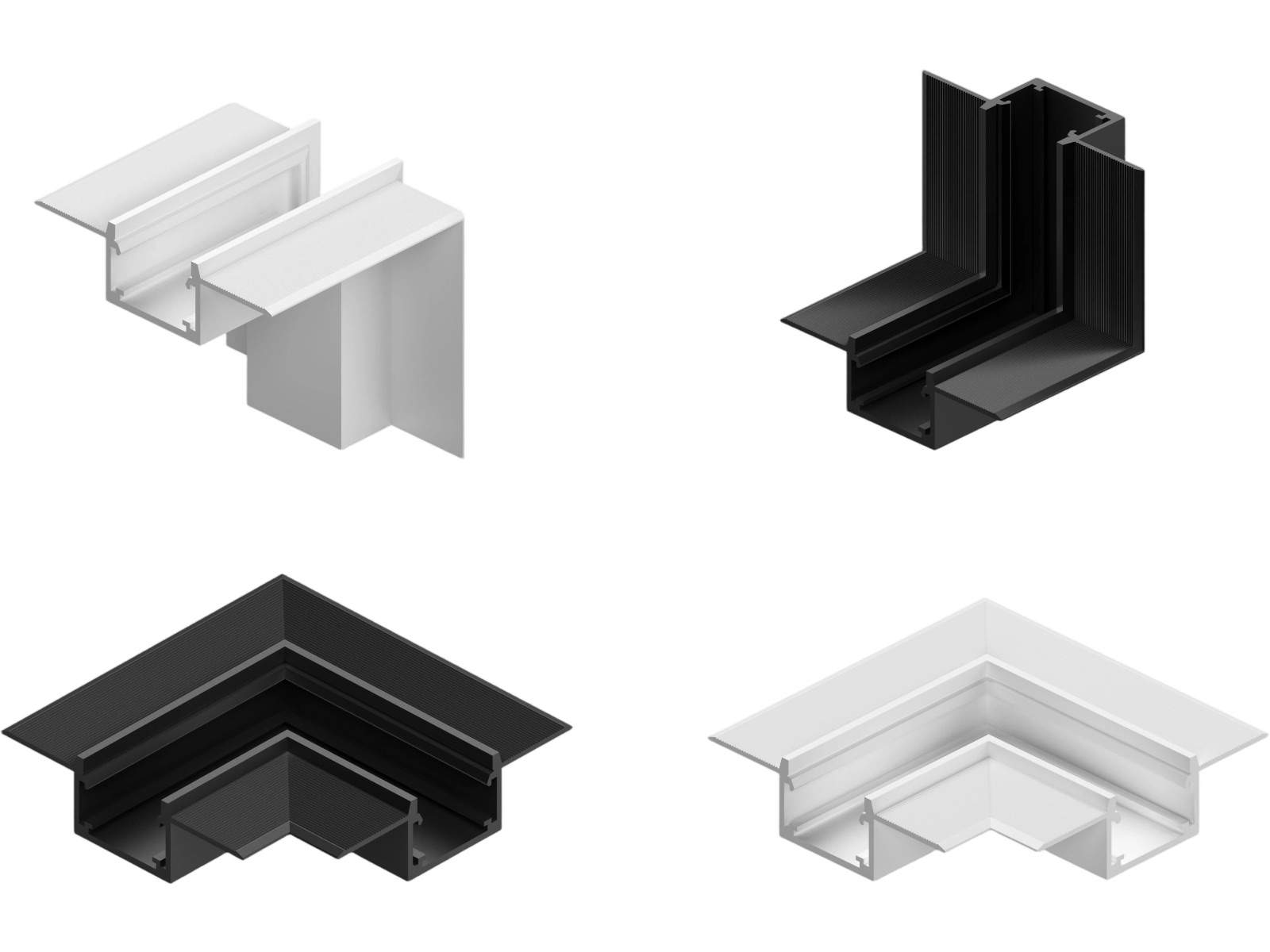

Recessed Magnetic Track Corner Connector
Recessed corner connector for seamless 90° turns in embedded installs.
- Full aluminum
- White / black / gold
- DC48V
- True recessed install

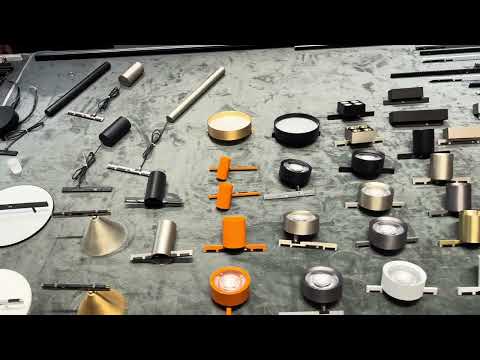

Video
See Magnetic Track in production
Technical specifications
Engineering data sheet
| Voltage | DC48V |
|---|---|
| Rail length | 1000 / 2000 / 3000 mm |
| Light source | Bridgelux COB |
| Power supply | 100W / 200W |
| Finishes | White / Black / Silver / Gold |
| Warranty | 5 years |
Full LM-79 / LM-80 / IES files available on request. Specifications subject to continuous improvement.
Typical applications
Where this category fits
Retail
Showrooms
Hotels
Homes
Galleries
Restaurants
Certifications carried
Inquiry
Request a quote for Magnetic Track
Tell us your target market, certifications required, and approximate volume. Our sales engineers will reply within 24 hours with a quotation, photometric files and lead time.
- Factory-direct pricing
- LM-79 / IES files included
- Paid sample available, refundable on order
- OEM/ODM branding & packaging supported
Related categories
Explore other product lines
Panel Lights
Edge-lit, backlit, frameless, IP65 and sensor LED panels for offices, cleanrooms, retail and healthcare.
Ceiling Lights
Full-spectrum, backlit round, concave and modern LED ceiling lights for homes, hotels and offices.
Tri-proof Lights
IP65 / IP66 / IP69K waterproof, dustproof, anti-corrosion LED batten and vapor lights for harsh environments.
Pendant Lights
Linear up/down LED pendant lights for dining tables, offices and hospitality with touch dimming.
Spotlights
Rotatable and multi-head GU10 / E26 surface-mounted ceiling spotlights in black, white and nickel.
Accessories
Surface, recessed and lay-in mounting frames plus galvanized LED driver junction boxes.
Garment Rack
DC24V linear LED light bars, power supplies and connectors for clothing racks and retail displays.
LED Modules
AC-input round LED ceiling modules and street-light boards — Bluetooth, tunable white, Triac and remote.
Mounting Plates
Galvanized new-construction mounting plates and brackets for 3–12 inch round and square recessed lights.
FAQ
Magnetic Track — Frequently asked questions
Buyer-side questions we get most often about 48v magnetic track system.
Ask our sales teamWhat can the 48V magnetic track system do?
It is a full modular ecosystem: choose surface, recessed or pre-buried rails, then magnetically attach spotlights, grille lights, mini and globe pendants, and link runs with flexible or L-shape corners — all tool-free on DC48V.
What finishes and optics are available?
Spotlights come in white, black, silver and gold with honeycomb, spiral or deep-baffle anti-glare optics on Bridgelux COB, from 3W to 10W.
How is the track powered?
A DC48V power supply (100W or 200W) feeds the rail through an inline power connector, keeping the system at safe low voltage.
Can the track turn corners?
Yes — surface, embedded and recessed 90° corner connectors plus a flexible angle joint let you route the track around walls and ceilings.
